公司的核心產品—各種型號的連續逆流（超聲）提取機，它凝聚了超聲提取、動態逆流提取、連續自動排渣過濾、連續動態循環蒸發濃縮、殘渣殘留溶劑回收、尾氣殘留溶劑回收、特種密封等15項專利和關鍵技術，實現了全程密封條件下的連續化運行、自動化控制，在低溫或常溫條件下實現快速提取、濃縮，是一套高效、節能、安全、環保的生物技術裝備，廣泛應用于從天然植物中生產制備中成藥、天然色素、香精香料、食品添加劑、保健品、化妝品、飼料添加劑、植物農藥等產品，特別適用于大規模使用有機溶劑提取熱敏性物質。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
產品展示
|
產品屬性
| 產品名稱： | 履帶壓濾分離機 |
| 產品編號： |
產品描述
1.簡介
履帶壓濾分離機是公司核心產品之一，專用于提取渣和液的分離，減小提取渣中殘留含液量。

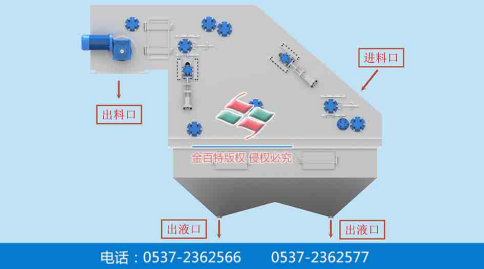

2.工作流程及原理
提取液進入履帶壓濾分離機中，經過雙履帶擠壓、過濾，渣和液分離。
3.質量指標
3.1.提取液過濾分離精度：約40mesh。
3.2.提取渣殘留溶液量：約80%。
4.應用范圍
各種物料和水的混合料。
5.設備構成
網帶
擠壓履帶
電機減速機
糾偏器
分離液收集槽
在線液位計
變頻器
在線清洗裝置，快開式觀察和清洗手孔
6.型號代號
7.材質
材質有sus304、sus316L等選擇，也可根據客戶的要求定做特種材質。
8.型號規格及圖片

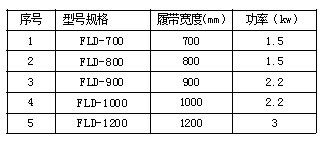

型號規格一覽表

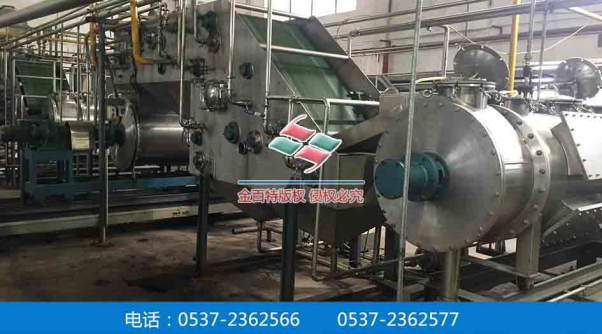

9.典型提取生產線工程實例：
工程實例圖片
