公司產品
公司的核心產品—各種型號的連續逆流（超聲）提取機，它凝聚了超聲提取、動態逆流提取、連續自動排渣過濾、連續動態循環蒸發濃縮、殘?jiān)鼩埩羧軇┗厥?、尾氣殘留溶劑回收、特種密封等15項專利和關鍵技術，實現了全程密封條件下的連續化運行、自動化控制，在低溫或常溫條件下實現快速提取、濃縮，是一套高效、節能、安全、環保的生物技術裝備，廣泛應用于從天然植物中生產制備中成藥、天然色素、香精香料、食品添加劑、保健品、化妝品、飼料添加劑、植物農藥等產品，特別適用于大規模使用有機溶劑提取熱敏性物質。
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
Continuous Counter-flow Ultrasonic Extraction Complete Machinery, as core products, has agglomerated of 15 patents and know-how technologies, such as ultrasonic extraction, dynamic counter-flow extraction, continuous filtration with automatic outlet of cake, low-temperature evaporation concentration, high efficient recovery of organic solvent, specific mechanic seal etc. The machinery realizes continuous production and automatic control under seal condition, and realizing fast extraction production under low and normal temperature through the whole process. It is wildly used for extracting and producing Chinese Traditional Medicine, natural colors, flavors and fragrances, food additives, health products, cosmetics, feed additive, plant pesticides etc from various plants. It is used most suitable for extracting and producing in large scale heat sensitive extracts by organic solvent.
產品分類
產品展示
|
產品屬性
| 產品名稱： | 園棍履帶輸送機 |
| 產品編號： |
產品描述
1.產品簡介
園棍履帶輸送機是公司常規產品之一，主要用于原料和提取渣等物料的輸送。
本公司生產的園棍履帶輸送機，根據用途不同有三種型式：一是直線型，二是‘Z’形，三是‘L’形，滿足水平輸送、斜上輸送、提升輸送等要求。
根據用途不同，履帶的型式不同，有光板、隔板、擋板等不同選擇。

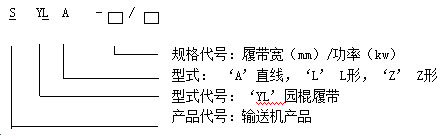

2.型號代號：
標記示例：SYLA-600/2.2型，表示履帶寬度為600mm的園棍履帶輸送機，直線型，電機功率2.2kw。
3.型號規格

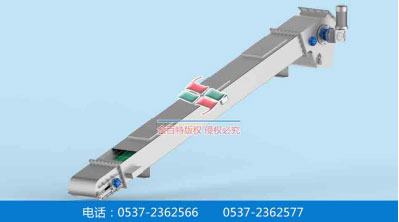

3.1.直線型園棍履帶輸送機
特點：輸送機為直線型。
型號規格一覽表
3.2.‘L’形園棍履帶輸送機
特點：輸送機為‘L’型。

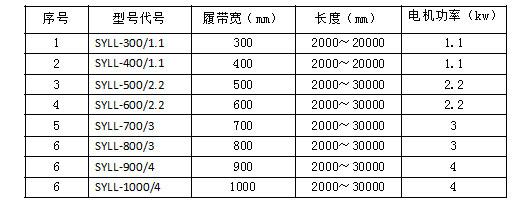

型號規格一覽表

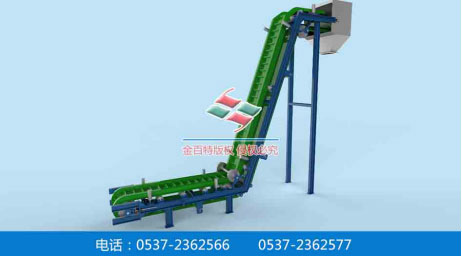

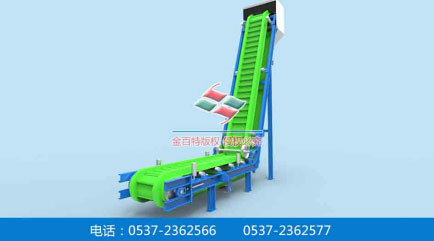

3.3.‘Z’形園棍履帶輸送機
特點：輸送機為‘Z’型。

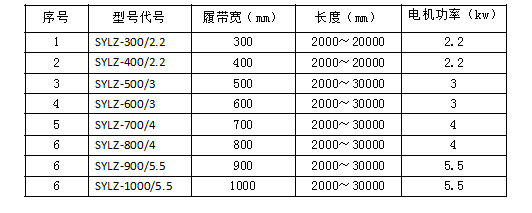

型號規格一覽表
3.4.上述任一產品，都可根據用戶要求設計定制履帶寬度、輸送長度或提升的高度。
4.配置
4.1.標準配置
進料口
出料口
方形手孔
刮料器
回料清掃裝置
4.2.定制配置
進出料口的連接法蘭
5.材質
框架、支架為有碳鋼、sus30408等選擇。
履帶有食品級和普通選擇。
可根據客戶的要求定做特種材質。
